Manipulator systems

Manipulator systems

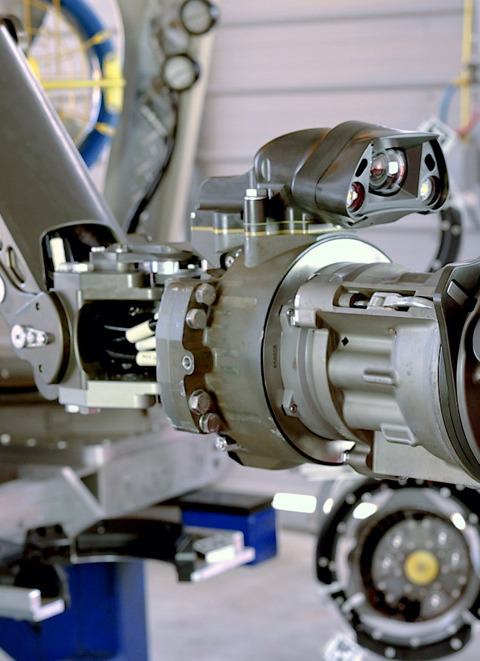

Our Schilling Robotics legacy brand delivered its first manipulator system in 1986. Since then, we have delivered more than 3,000 systems. Our manipulators are deployed on nearly every work-class ROV in the world as well as other submersibles, including electric ROV's, and research and exploration submarines.

The Schilling Robotics manipulators perform a variety of intervention tasks. These systems are controlled remotely from the surface and range from the rugged five-function RigMaster™ to the seven-function, position-controlled TITAN 4™. Additional manipulator systems include the CONAN™, ORION™ and ATLAS™.

As subsea intervention tasks increase in complexity, our manipulator systems will continue to be at the forefront, providing the dexterity, strength and reliability to perform intricate tasks under water.

Dexterity, strength and reliability

Benefits include:

  • Reliable
  • Agile
  • Strong
  • Robust performance
  • Easy installation
  • Multiple configurations
  • Streamlined
  • Rugged
  • Durable

Schilling Robotics Manipulator Lease Program

The Schilling Robotics manipulator lease program conveniently allows customers to select a desired manipulator for a specific job at the cost of a day rate and offers flexibility for scheduled and unscheduled maintenance without committing to the full cost and required long-term maintenance of equipment.

Schilling Robotics manipulators are the highest quality systems on the market for their dexterity and strength needed to withstand
the industry’s harshest conditions day after day.

For pricing and availability, please contact us.

TITAN Resized 3

The TITAN 4 is widely regarded as the world’s premier servo-hydraulic remote manipulator system. Since 1987, these systems have been the industry standard for dexterous manipulator systems used in a wide
range of subsea applications.

Arm Specifications
• Standard Depth...............4,000 msw (13,124 fsw)
• Weight in air....................................100 kg (221 lb)
• Weight in water................................78 kg (174 lb)
• Lift at full extension........................122 kg (270 lb)
• Maximum lift, nominal.................454 kg (1,000 lb)
• Standard Gripper Opening............99 mm (3.9 in.)
• Grip Force, nominal....................4,092 N (920 lbf)
• Wrist torque, nominal................170 Nm (125 ft/lb)
• Wrist rotate, cont...........................360°, 6-35 rpm

Electrical and Telemetry
• Input Power, Controller.......................90-260VAC
• Input Power, Arm......................................24 VDC
• Power, Controlle........................6W start, 3W run
• Power, Arm..............................6W start, 45W run
• Telemetry.........................RS-232 or RS-422/485

Hydraulic Requirements
• Fluid.........................Mineral, Glycol, or Synthetic
• Viscosity.............................................10-200 cSt
• Available Flow....................................5.7 - 19 lpm
• Max. Pressure........................................3,000 psi
• Max. Fluid Temperature................................54ºC
• Fluid Cleanliness..........................ISO 4406 14/11

ATLAS Resized 3

The ATLAS is tough and durable with seven degrees of freedom and a high lift capacity. This gives operators the freedom and strength to perform a wider range of heavy-duty jobs in harsh subsea environments.

Arm Specifications
• Standard Depth..............6,500 msw (21,327 fsw)
• Weight in air.....................................73 kg (160 lb)
• Weight in water................................50 kg (109 lb)
• Lift at full extension........................250 kg (550 lb)
• Maximum lift, nominal.................500 kg (1,000 lb)
• Standard Gripper Opening...........198 mm (7.8 in)
• Grip Force, nominal.................4,448 N (1,000 lbf)
• Wrist torque, nominal................205 Nm (150 ft/lb)
• Wrist rotate, cont...........................360°, 6-35 rpm

General Discription
• Control method.................................Rate control
• Input device............Optional rate hand controller
• Number of functions............................6 plus grip
• Materials of construction.........6061-T6 aluminum,
stainless steel, titanium

Hydraulic Requirements
• Fluid........................Mineral, Glycol, or Synthetic
• Viscosity............................................10-200 cSt
• Available Flow...................................5.7 - 19 lpm
• Max. Pressure........................................3,000 psi
• Max. Fluid Temperature...............................54ºC
• Fluid Cleanliness.........................ISO 4406 14/11
